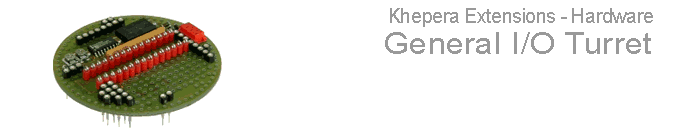

- Digital inputs and outputs
- Analog inputs with adjustable gain
- Power outputs
- Large free connection place
- Pass-throughout K-bus
New Extension Possibilities
- Custom sensors (compass, long range distance sensors...)
- Actuators (manipulators, sensors positioning...)
- Communication devices (IR remote control, radio link...)
|
Inputs:
|
8 digital
2 analog (absolute) with adjustable gain
1 analog differential
|
|
Outputs:
|
4 digital low power
1 digital powered
1 motor control (full H bridge)
|
|
Extension Bus:
|
The robot with a general I/O turret can be expanded by new modules added on the K-Extension bus (if the mounted components do not disturb)
|
|
Size:
|
diameter: 55 mm
height: 10 mm
|
|
Software Environment:
|
LabVIEW® (on PC, MAC & SUN)
(LabVIEW® is a trademark of National Instruments.)
|
|
