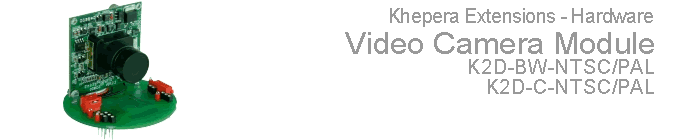

- High resolution black and white or color camera
- Automatic light compensation (auto iris)
- PAL or NTSC video output via cable: no on-board framegrabber nor processing capability. An external framegrabber is required.

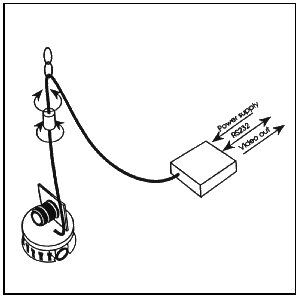

- Cable with rotating contact for unrestricted motion
New Vision Possibilities
A Khepera equipped with K2D becomes a very flexible test platform for vision research. There is also a 360 version of the K2D using a spherical mirror for a full 360 degree field of view.
|
Video Output:
|
NTSC or PAL
2:1 Interlaced
75 ohms BNC connector
|
|
Picture Elements:
|
NTSC: 510 (H) x 492 (V) pixels
PAL: 500 (H) x 582 (V) pixels
|
|
Video Transmission:
|
By flexible cable and rotating contacts for high robot mobility
|
|
Field of View:
|
Standard: 39 deg (H) x 28 (V). Optional lenses available on request from 15 deg x 11 deg up to 90 deg x 65 deg.
|
|
Extension Bus:
|
The K2D video turret is a top turret. No other turrets can be added on top of the K2D, but it can be used on top of others.
|
|
Size:
|
Diameter: 55 mm
Height: 50 mm
|
|
