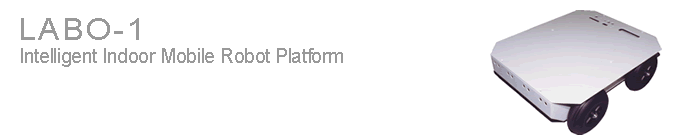

LABO-1 is an autonomous mobile robot developed for light indoor experiments in close quarters. Its 4 wheel electronic differential drive allows the frequent sharp turns required in such experiments. Flat payload area permits easy allocation of experiment specific loads to accommodate a wide range of experiments.
- Obstacle avoidance in complex real environment using active infrared sensors
- 4 wheel differential drive allows smooth turning with zero radius
- Free space detection and landmark-based navigation using optional vision system
- Optional front and back bumpers with built-in contact detection sensors for operation in highly confined areas
|
Processor:
|
Motorola 68332 microcontroller. Additional PIC processors for options
|
|
Basic Sensors:
|
8 active infrared sensors
|
|
Input-Output:
|
Serial port for program download and remote control
2 serial ports
14 digital inputs
8 digital outputs
|
|
Size:
|
width: 28 cm (11 inches)
length: 38 cm (14.9 inches)
height: 15 cm (5.9 inches)
|
|
Weight:
|
6.5 kg (14.3 lbs)
|
|
Payload:
|
About 5 kg (11 lbs) when running on a smooth flat surface
|
|
Top Speed:
|
40 cm/sec (1.3 feet/sec)
|
|
Battery:
|
12 V
|
|
Battery duration:
|
3 hours (unloaded) of continuous operation
5 hours with optional add-on battery
|
|
Motor Output:
|
24 W (x4) maximum
|
Processor Options:
- Standard Processor - Vesta board (Motorola 32bit MC68332)
- Laptop PC or PC
|
Main Options:
- Video camera/transmitter/receiver
- Remote control transmitter/receiver
- Vision based navigation
- People following/people avoiding system
- Light source following/avoidance software package
|
|
