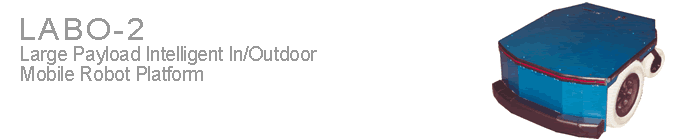

- Autonomous mobile robot platform for behavior-based AI (New AI) or conventional AI experiments, which
uses odometry, measurements, and planning
- Exceptionally large payload: up to 135 kg (297 lbs). A flat payload surface for serious mobile experiments
- Smooth 2 wheel differential drive steering withe zero turning radius
- Very quiet operation with large transport capacity
- Uses active infrared sensors and optional ultrasonic sensors for obstacle avoidance and maneuver in
complex real environment
- Free space detection and landmark-based navigation using optional vision system
- Collision avoidance and target following using inexpensive vision system
- Open design to accommodate a wide range of additional sensors. Most of AAI's options applicable
- Long battery life - 8 hours continuous operation with 20 kg payload per battery charge
- PC/104 processor for fully PC compatible software development
- MC 68332 optional processor is a powerful 32-bit on-board processor with expandable on-board memory
- Encoders for conventional navigation methods
- Fully autonomous robot platform ideal for laboratory experiments and application development
|
Processor:
|
PC/104 processor
Optional Motorola MC68332, 32bit microcontroller
Optional XSCALE PXA-255 processor
Optional MC6811 and/or PIC for peripheral processing
|
|
Active IR sensors:
|
6 in front, 1 on each side, and 2 in back
|
|
Optional ultrasonic sensors:
|
6 in front and 2 in back
|
|
Standard I/O:
|
Serial port for program download, joystick and control
2 serial ports
14 digital inputs
8 digital outputs
|
|
Size:
|
width: 64 cm (25 inches)
length: 77 cm (30 inches) including bumper
height: 38 cm (15 inches)
|
|
Weight:
|
90 kg (198 lbs)
|
|
Payload:
|
135 kg (297 lbs) maximum
|
|
Top Speed:
|
2 m/sec
|
|
Battery:
|
12 V, U-1 (x2), 50 Ah
|
|
Run Time:
|
8 hours (with 30 kg payload)
|
|
Motor Output:
|
400 W x 2 = 1.06 HP
|
|
Controls:
|
External user switches and small LCD display screen. Joystick for transport and testing.
|
Video Clip - LABO-2 with small vision follows an orange object
Windows Media Player (600 KB)
|
Processor Options:
- Standard Processor - Pentium III based PC/104 board
- Vesta board - Motorola 32bit MC68332
- KoreBot board - 400 MHz ARM processor based board
- Laptop PC or PC
|
Main Options:
- Video camera/transmitter/receiver
- Wireless ethernet
- Remote control transmitter/receiver
- Vision based navigation
- People following/people avoiding system
- Light source following/avoidance software package
|
|
