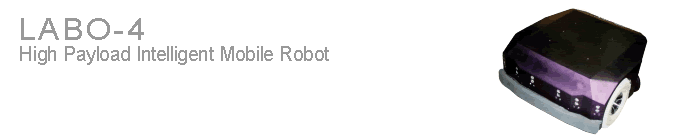

LABO-4 robot, the latest model in the popular LABO series, is an intelligent robot platform
with high payload which can be configured for a wide range of experiments and real-world applications.
As in other LABO models, it has a flat payload surface for serious mobile experiments and on-board
applications. With its two powerful motors and low center of gravity, LABO-4 operates very smoothly
indoors and outdoors over varied terrains. Other features include 25.5 cm (diameter) high traction
pneumatic tires and pivoted casters. The speed can be adjusted continuously from snail's speed up to
6.5 km/h (180 cm/sec). The robot is equipped with ultrasonic and infrared sensors for obstacle
avoidance and can be programmed to maneuver autonomously or semi-autonomously in complex real world
environments. With the basic software built using behavior-based AI theory, 8 hours of continuous
autonomous operation with 30 kg payload is possible. Optional vision system allows experiments on
free space detection and landmark-based navigation. There is a choice of several on-board processors:
the default PC/104 processor, MC68332 single chip computer, a notebook PC, the Korebot board, and
PIC(s), to meet the needs of experiments.
|
Processor:
|
PC/104 processor
Optional Motorola MC68332, 32bit microcontroller
Optional XSCALE PXA-255 processor
Optional MC6811 and/or PIC for peripheral processing
|
|
Basic Sensors:
|
8 ultrasonic sensors
10 active IR sensors
Tactile sensors in front and rear bumpers
|
|
Standard I/O:
|
2 serial ports for program download and remote control
6 digital inputs
8 digital outputs
6 analog inputs
Total number of extendable inputs/outputs are 192 (option)
|
|
Size:
|
width: 58 cm (23 inches)
length: 65 cm (26 inches) including bumper
height: 31 cm (12 inches)
|
|
Weight:
|
65 kg (143 lbs) including batteries
|
|
Payload:
|
115 kg (253 lbs) maximum
|
|
Top speed:
|
2 m/sec
|
|
Batteries:
|
12 V, U-1 (x2), 32Ah
|
|
Run time:
|
8 hours of running on smooth surface (with 30 kg payload)
|
|
Motor Output:
|
350W x 2
|
Processor Options:
- Standard Processor - Pentium III based PC/104 board
- Vesta board - Motorola 32bit MC68332
- KoreBot board - 400 MHz ARM processor based board
- Laptop PC or PC
|
Main Options:
- Video camera/transmitter/receiver
- Wireless ethernet
- Remote control transmitter/receiver
- Vision based navigation
- People following/people avoiding system
- Light source following/avoidance software package
|
|
