CPU:
|
Motorola MC68332 32-bit microcontroller
|
|
RAM:
|
1 MByte
|
|
ROM:
|
64K Bytes
|
|
LCD display:
|
2 x 16 characters
|
|
Sensors:
|
13 IR sensors
8 ultrasonic sensors
1 CCD camera
|
|
Behavior-based vision system:
|
V3 vision processor (TMS320C6202GJL-200 by Texas Instruments) is used. Maximum frame accuracy:
720 x 480. Processing speed of basic affordance: 15 ~ 40 frames/second. User's other processor can be
added on board.
|
|
Battery:
|
2 x 12 V 55 Ah sealed lead-acid batteries
|
|
Safety:
|
2 kill switches, joystick, basic collision avoidance behavior
|
|
User I/O ports:
|
6 analog to digital
6 digital input
8 digital output
1 serial port
|
|
Language:
|
C language (GNU-C language compiler, TMS320C6200 compiler)
|
|

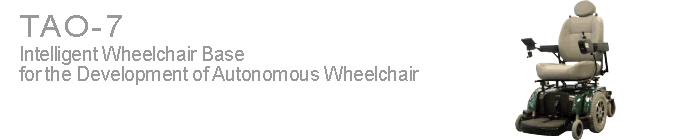

Chair:
|
Length: 100.3 cm (39.5 inches)
Width: 64.5 cm (25.4 inches)
|
|
Tires:
|
35.6 cm (14 inches) drive wheels
20.3 cm (8 inches) rear casters
15.2 cm (6 inches) anti-tip wheels
|
|
Weight Capacity:
|
138 kg (300 lbs) maximum
|
|
Maximum Speed:
|
4.5 mph (8 kph)
|
|
Ground Clearance:
|
8.9 cm (3.5 inches)
|
|
Turning radius:
|
49.5 cm (19.5 inches)
|
|
Run time:
|
28 km (on flat surface)
|
