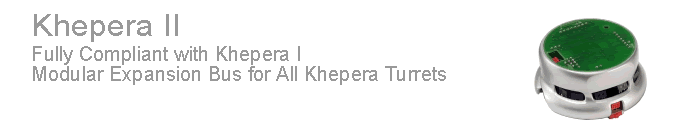

Khepera II is a miniature mobile robot with functionality similar to that of larger robots used in research
and education. Khepera was originally designed as a research and teaching tool for a Swiss Research
Priority Program at EPFL in Lausanne. It allows real world testing of algorithms developed in simulation
for trajectory planning, obstacle avoidance, pre-processing of sensory information, and hypotheses on
behaviour processing, among others.
Very modular at both the software and hardware level, Khepera has a very efficient library of on-board
applications for controlling the robot, monitoring experiments, and downloading new software. A large
number of extension modules make it adaptable to a wide range of experimentation.
To facilitate programming of the robot, several development environments are supported spanning from
standard cross-C developments to more sophisticated tools like SysQuake, LabVIEW® or
MATLAB®,
to the 3D WEBOTS Khepera simulator. Please note however that these software are just a suggestion:
Any other programming environment capable of communicating over a serial port can also be used.
|
Processor:
|
Motorola 68331, 25MHz
|
|
RAM:
|
512KBytes
|
|
Flash:
|
512KBytes
Programmable via serial port
|
|
Motors:
|
2 DC brushed servo motors with incremental encoders (roughly 12 pulses per mm
of robot motion)
|
|
Sensors:
|
8 infra-red proximity and ambient light sensors with up to 100 mm range, and
Power consumption
|
|
I/O:
|
3 analog inputs (0-4.3V, 8bit)
|
|
Power:
|
Power adapter, or
Rechargeable NiMH batteries
|
|
Autonomy:
|
1 hour, moving continuously.
Additional turrets will reduce battery life.
|
|
Communication:
|
Standard serial port up to 115kbps
|
|
Extension bus:
|
Expansion modules can be added to the robot using the K-Extension bus.
|
|
Size:
|
70 mm x 30 mm (approximately)
|
|
Weight:
|
Approx. 80g
|
Video Clip - multiple Khepera (original Khepera) Windows Media Player (1.5 MB)
|
|
Hardware Options
|
|
Gripper Module
|
- Built-in CPU for local control
- Detects objects between the gripper fingers
- Able to examine electric resistance of the object in the gripper
|
|
K213 Vision Turret
|
- Linear vision (1 x 64 pixels)
- 256-level gray scale
- Automatic iris adjustment
|
|
General I/O Turret
|
- Framework to mount application-specific sensors and actuators
- Digital input/output
- Variable gain analog input
|
|
IR Communication Turret/Base
|
- Inter-Khepera II message exchange
- Khepera II - host uplink/downlink
- Maximum 115.2 KBPS communication speed
- Collaboration and evolution experiments with multiple robots
|
|
Radio-modem Turret/Radio Base
|
- Radio communication with up to 32 robots
- Direct robot addressing
- Error detection and correction
|
|
Video Camera Module
|
- 492 x 510 pixels (NTSC)
- Automatic iris control output
- NTSC or PAL format
- Color or black and white
- Cable connection
|
|
Omni-directional CCD Camera
|
- In comparison with the conic optic, this cylindrical optic allows you to see a
large scale, from near the robot to the horizon.
|
|
Wireless Camera Vision Turret
-- NEW --
|
- Color vision sensor (380x450 pixels)
- Embedded microphone
- 2.4GHz wireless image transmission to the base receiver
- 2.4GHz wireless audio transmission to the base receiver
- Four transmission channels
|
|
Evolvable Hardware Turret
|
- Using Xilinx 6200 series FPGA (Vertex version also available)
- For both "extrinsic" and "intrinsic" hardware evolution
- Full functions of the FPGA accessible
|
|
Continuous Power Supply
|
- Provides power to several Khepera II for continuous running
- Reconfigurable maze
|
|
Rotating Contact (cable unroller)
|
- Connects Khepera II with host computer for long running experiments
- Maintains power and communication for 1 or 2 Khepera IIs
|
Software Options
|
|
WEBOTS
|
- Simulation package for Khepera II and some optional turrets
- 3D animation, actuator and sensor modelling, and multi-agent capabilities
- Simulation results can be downloaded onto real Khepera II with simple recompilation
|
|
